TMOS lens

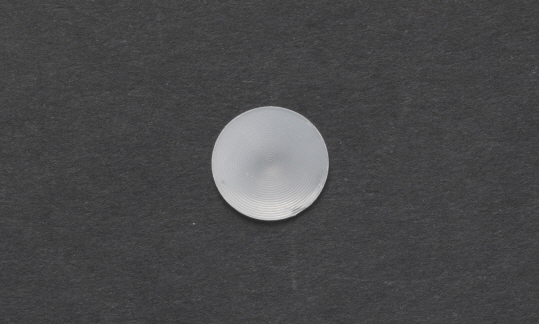

TMOS63-10 for TMOS sensor STHS34PF80(lens only)

3.00$

Color

Clear

SHIPPING METHOD

Shipping prepaid: EMS (operated by FedEx) / DHL
Collect-to-charge: FedEx / DHL / UPS

PAYMENT OPTIONS

PayPal

OUR ADVANTAGES

Best optical performance at IR
Qualified with global buyers
Hands-on experience with R&D

Weight	30 kg
Brand	Fresnel Factory Inc.
Lens Diameter (mm)	10
Thickness (mm)	0.65
Material	Poly FIR200
Overall Size (mm)	Ø10
Color	White
Application	People Counter
Sensor Type	TMOS
Detection Pattern	Long Range
Production method	Injection
Optical Transmittance	42.81% @ 8–12 µm (0.65T) / 62% @ 8–12 µm (0.2T)
Wavelength Range	FIR (8–12 µm)
UV / Weather Resistance	Yes
Recommended Sensor / Module	STMicroelectronics STHS34PF80
Lens Outline	Circular
Color	Black, White

DESCRIPTION
FEATURES

Lens TMOS63-10 for TMOS sensor STHS34PF80

(Long range narrow detection lens)

This document specifies TMOS sensor STHS34PF80 from STMicroelectronics PCB TMOS_34PF80Rev2.1_noled_FrontCable and Lens

TMOS63-10 from Fresnel Factory Inc.

TMOS63-10 is suitable for people counter, narrow and long-distance detection.

Detection performance can be different according to test setting and room condition. The performance in this document is based on room temperature 25 Celsius,

Dimension and orientation of TMOS63-10 lens

Lens TMOS63-10

Detectable Range and Field of View.

Lens TMOS63-10
